Portfolio › 1980s › BELLAVIST del CARMEN (later MAXIMIZER / YEOMAN XXX), 22m Maxi — first hull BELLAVIST del CARMEN (Maxi Dolphin / Winch Design)
#175

BELLAVIST del CARMEN (later MAXIMIZER / YEOMAN XXX), 22m Maxi — first hull BELLAVIST del CARMEN (Maxi Dolphin / Winch Design)

Racing Yacht | 1986
Built by Maxi Dolphin Maxi Dolphin

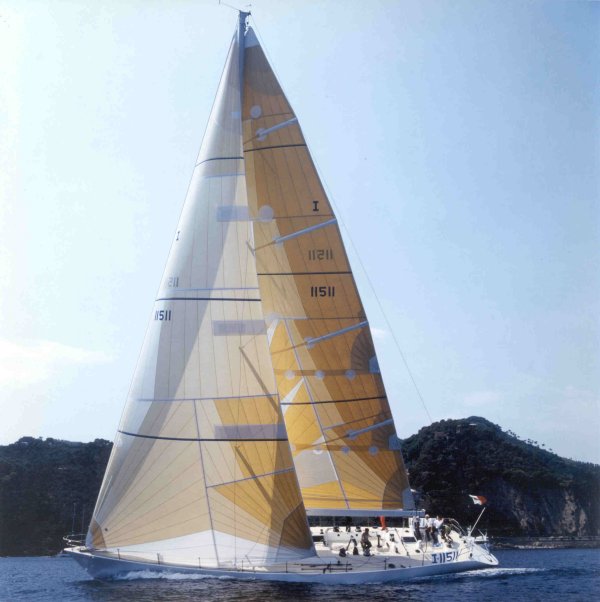

BELLAVIST del CARMEN (later MAXIMIZER / YEOMAN XXX) racing yacht

Design 175 is a 22m Maxi — first hull BELLAVIST del CARMEN (Maxi Dolphin / Winch Design) BELLAVIST del CARMEN (later MAXIMIZER / YEOMAN XXX) designed by Farr Yacht Design in 1986. She has an overall length of 72.18 feet and was built by Maxi Dolphin

SpecificationValue
Year1986
TypeRacing Yacht
LOA72.18 ft / 22 m
Beam17.36 ft / 5.29 m
DWL59.38 ft / 18.1 m
Draft11.48 ft / 3.5 m
Displacement39600 lbs / 18000 kg
Main Hoist (P)78.68 ft / 23.98 m
Main Foot (E)30.55 ft / 9.31 m
Headsail Hoist (I)87.57 ft / 26.69 m
Foretriangle Base (J)25.31 ft / 7.71 m
BuilderMaxi Dolphin

Technical Resources

Free downloads — no account required.

  • Deck Plan

    Deck layout drawing.

    PDF · 93 KB

    Download

  • Sail Plan

    Sail plan drawing.

    PDF · 128 KB

    Download

Design Plans

Available

Original design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.

12 original drawings in this plan set
