Sector: RACING
Design No. 229

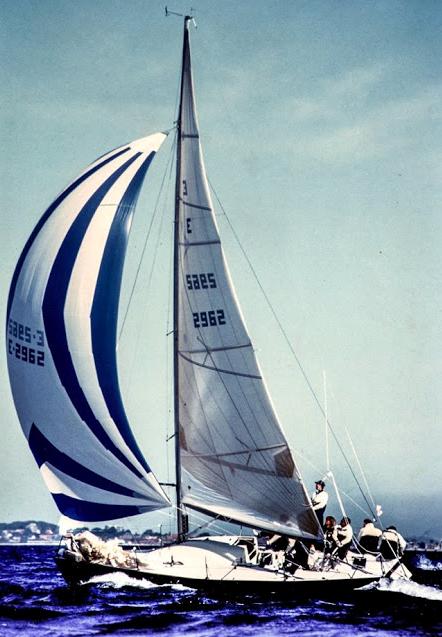

AZUR DE PUIG (ex-LONE)
3/4 Ton IOR Racing Yacht
Length9.82m / 32.22′
Design Year1990
Description
Design 229 is a 3/4 Ton IOR Racing Yacht AZUR DE PUIG (ex-LONE) designed by Farr Yacht Design in 1990. She has an overall length of 32.22 feet.
Visual Assets
Technical Specifications
| Year | 1990 |
| Type | Racing Yacht |
| LOA | 9.82 m32.22 ft |
| Beam | 3.25 m10.66 ft |
| DWL | 8.02 m26.31 ft |
| Draft | 1.93 m6.33 ft |
| Displacement | 3,212 kg7,083 lbs |
| Headsail Hoist (I) | 11.56 m37.93 ft |
| Foretriangle Base (J) | 3.35 m10.99 ft |
| Main Hoist (P) | 13.68 m41.6 ft |
| Main Foot (E) | 4.85 m15.91 ft |
Technical Resources
Free downloads — no account required.

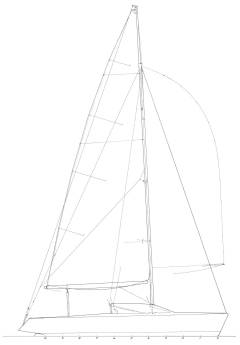

Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
15 original drawings in this plan set
HAND DRAWNCopies are high-resolution PDF copies of hand-drawn plans.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
The commission for LONE, a 3/4 Ton design, came to Farr Yacht Design in the fall of 1989 from Mr. Jan Bonde Nielson of London, England with an objective to win the 1990 3/4 Ton Worlds. The Farr design team was able to draw from their previous experience in the One Ton, Fifty Foot and Maxi arenas, but also from feedback on their 1988 3/4 Ton design, APHRODITE, owned by Dr. Osamu Kanno. APHRODITE placed 1st in class and fleet in the 1988 Japan Cup and had a creditable 4th place finish at the 1989 3/4 Ton Worlds in a large and competitive fleet. LONE is shorter length over all, lighter, narrower and has a deeper keel when compared to APHRODITE. LONE's sail plan reflects more rake aft in the mast and a general increase in sail area. Considerable attention was paid to LONE's very efficient deck layout with only the bare necessities in deck gear for simplicity and weight savings. Further comparisons to APHRODITE reveal the elimination of two winches from the cabin top which was shortened allowing for an increase in deck and cockpit space. Halyards were led aft to either side of the cabin top instead of down the center line. This design has proven to be a winner. Trialed in the Mediterranean in the spring of 1990, LONE had a fantastic win at Kiel Week, and went on to convincingly win the 1990 3/4 Ton Cup held at Flensburg, Germany with scores of 1-1-1-1-2 for a resounding 1st place victory.
