FARR ILC 40, ILC 40 Racing Yacht

Racing Yacht | ILC | 1993

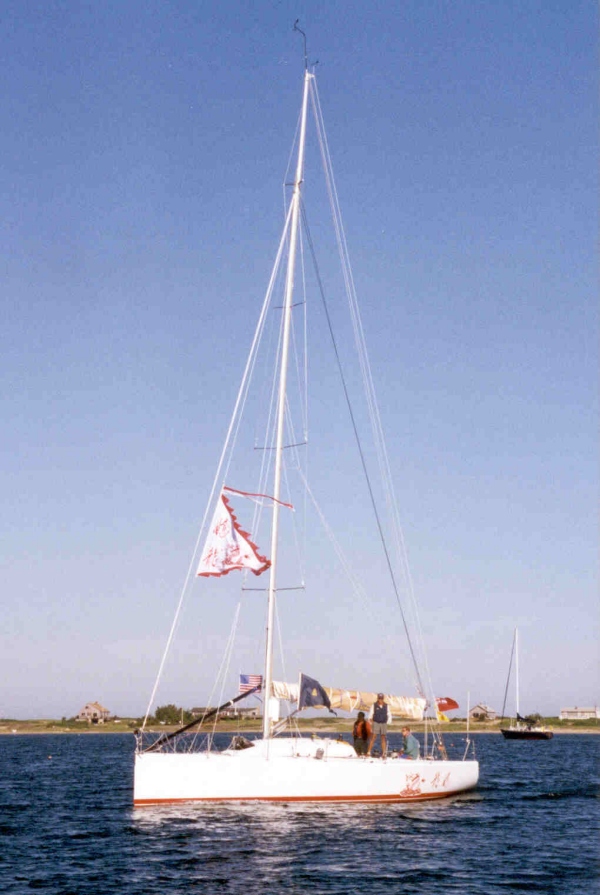

FARR ILC 40 racing yacht

Design 317 is a ILC 40 Racing Yacht FARR ILC 40 designed by Farr Yacht Design in 1993. She has an overall length of 40.98 feet and was built by Carroll Marine

SpecificationValue
Year1993
TypeRacing Yacht
RuleILC
LOA40.98 ft / 12.49 m
Beam13.12 ft / 4 m
DWL36.35 ft / 11.08 m
Draft7.84 ft / 2.39 m
Displacement12985 lbs / 5890 kg
Ballast7875 lbs / 3572 kg
Main Hoist (P)55.97 ft / 17.06 m
Main Foot (E)22.29 ft / 6.18 m
Headsail Hoist (I)51.9 ft / 15.82 m
Foretriangle Base (J)14.86 ft / 4.53 m
BuilderCarroll Marine

Technical Resources

Free downloads — no account required.

  • Deck Plan

    Deck layout drawing.

    PDF · 118 KB

    Download

  • Interior Layout

    Interior arrangement drawing.

    PDF · 135 KB

    Download

  • Sail Plan

    Sail plan drawing.

    PDF · 86 KB

    Download

Design Plans

Available

Original design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.

30 original drawings in this plan set

2D CADNative CAD plans available.
